Short Description:


  • Supply Ability: 100000M2/per day
  • Port: QINGDAO
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

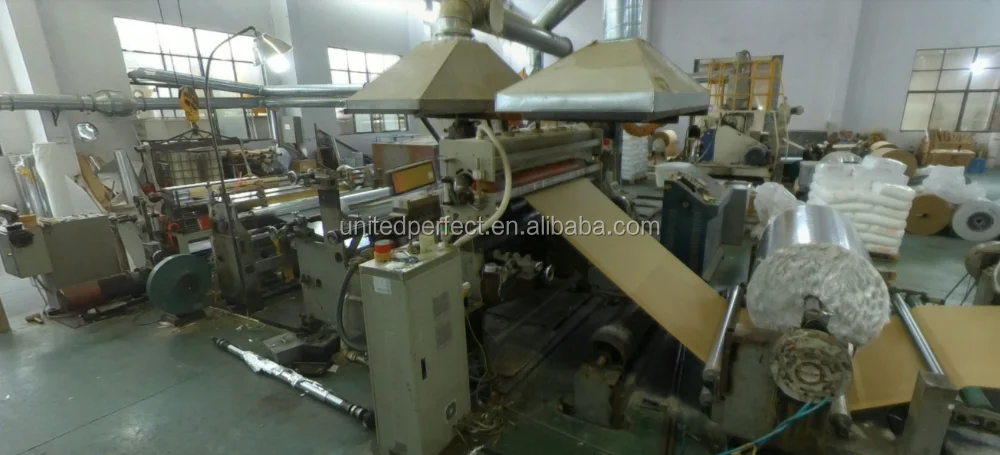

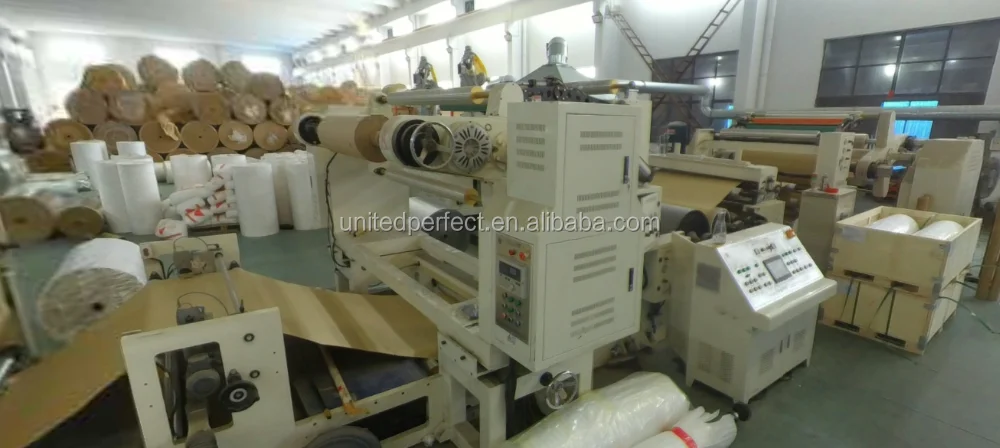

    Our Factory

    Jinan United Perfect Building Materials Corporation is proud to be in the foil lamination industry for more than 12 years with the joint effort of all the professional staff and valuable customers. Our products are selling very well in the domestic market and overseas markets, such as North America, Europe, South America and Southeast Asia, Africa etc.



    Black/White Fiber Glass Cloth With/without PE Coating

    Black fiberglass cloth with fire retardant and alkali-free performance, is suitable as a surface lamination for fiberglass wool and rock wool thermal insulation.

    Product Code

    BGC-130 Without PE

    BGC-160

    WithoutPE

    BGC-1601

    WithPECoating

    BGC-180

    WithoutPE

    Weight (gsm)

    130(±5%)

    160(±5%)

    190(±5%)

    180(±5%)

    Thickness

    0.130 MM

    0.160 MM

    0.170 MM

    0.180 MM

    Fiberglass count

    12*12/CM (±5)

    12*12/CM (±5)

    12*12/CM (±5)

    12*12/CM (±5)

    Fire retardant level

    B1

    B1

    B1

    B1

    MD tensile strength

    240 N/CM

    330 N/CM

    1100 N/CM

    900 N/CM

    1200 N/CM

    1000 N/CM

    1400 N/CM

    1000 N/CM

    Softness

    Soft

    Soft

    Soft

    Soft

    Dimension

    Size: 1.2m*500m, 1.2m*750m, 1.2m*1000m     Core I.D.: 3"(76mm ±1) paper-pipe

    Based on order, special sizes are also available.
    MSDS
    No harm for body and environment, non-volatile product.
    Usage/Applications
    Fiberglass cloth is good at fireproof, mildew resistant, damp proof and strong air permeability. After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.
    Packaging

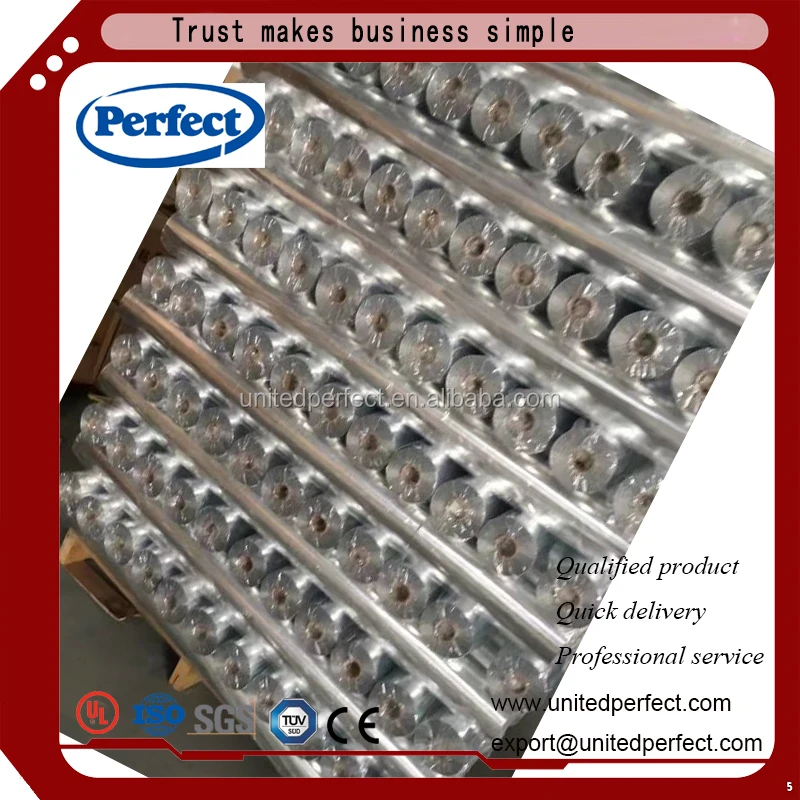

    Each roll is packed by foam-plastic-fabric.

    Remarks:

    a. The data above are typical results and subject to change without notice.

    b. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: ±0.5%.

    c. The products should be stored at room temperature, kept from wet and heat source.

    d. Good appearance without stain, oxidation, mildew.

    e. The users should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for their special purpose and technique

    Black fiberglass tissue with/without PE Coating

    Black fiberglass tissue with fire retardant and alkali-free performance, is suitable as a surface lamination for fiberglass wool and rock wool thermal insulation, as well as an acoustic insulation material for wood or aluminum ceiling panels.

    Product Code

    BFGT-50 Without PE

    BFGT-65

    Without PE

    BFGT-85

    Without PE

    BFGT-501

    With PE

    BFGT-651 With PE

    Weight (gsm)

    50

    65

    85

    80

    90

    Thickness(mm)

    0.3

    0.4

    0.5

    0.4

    0.5

    Fire retardant level

    B1

    B1

    B1

    B1

    B1

    MD tensile strength

    120 N

    130 N

    150 N

    135 N

    142 N

    CD tensile strength

    70 N

    90 N

    110 N

    75 N

    96 N

    Softness

    soft

    soft

    soft

    soft

    soft

    Dimension

    Width: 0.6m---2 m      Length: 100m-1000m     Core I.D.: 3"(76mm ±1) paper-pipe

    Based on order, special sizes are also available.
    MSDS
    No harm for body and environment, non-volatile product.
    Usage/Applications
    Fiberglass cloth is good at fireproof, mildew resistant, damp proof and strong air permeability. After laminated with glass wool or rock wool, the physical properties is excellent on heat preservation, noise elimination, fire retardant, extinction, etc.
    Packaging

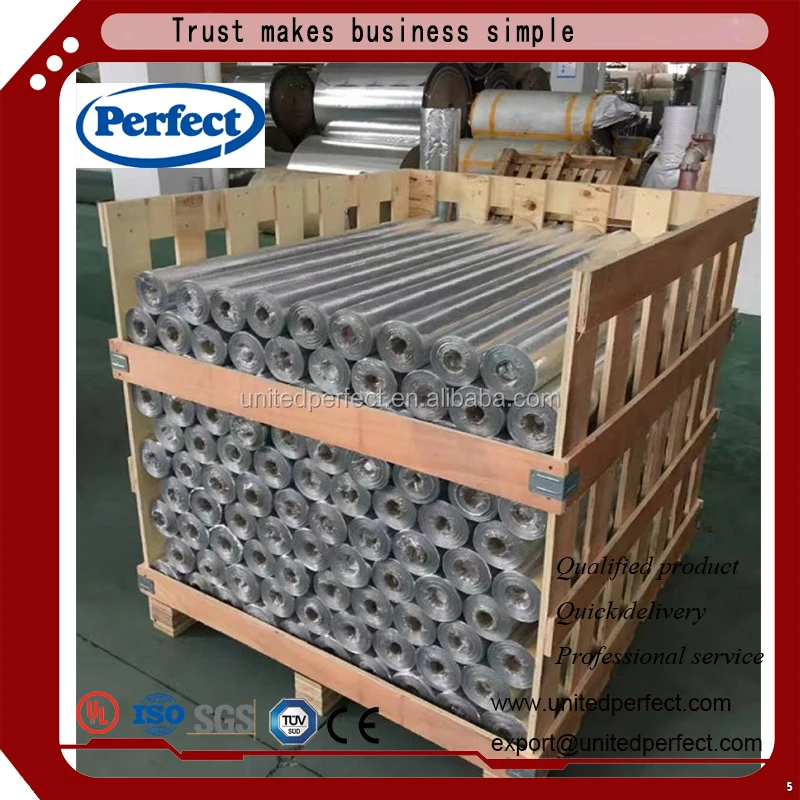

    Each roll is packed by foam-plastic-fabric.

    Remarks:

    a. The data above are typical results and subject to change without notice.

    b. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: ±0.5%.

    c. The products should be stored at room temperature, kept from wet and heat source.

    d. Good appearance without stain, oxidation, mildew.

    e. The users should take test and do trial-application on the above products before coming into application so as to witness and ensure suitability for their special purpose and technique

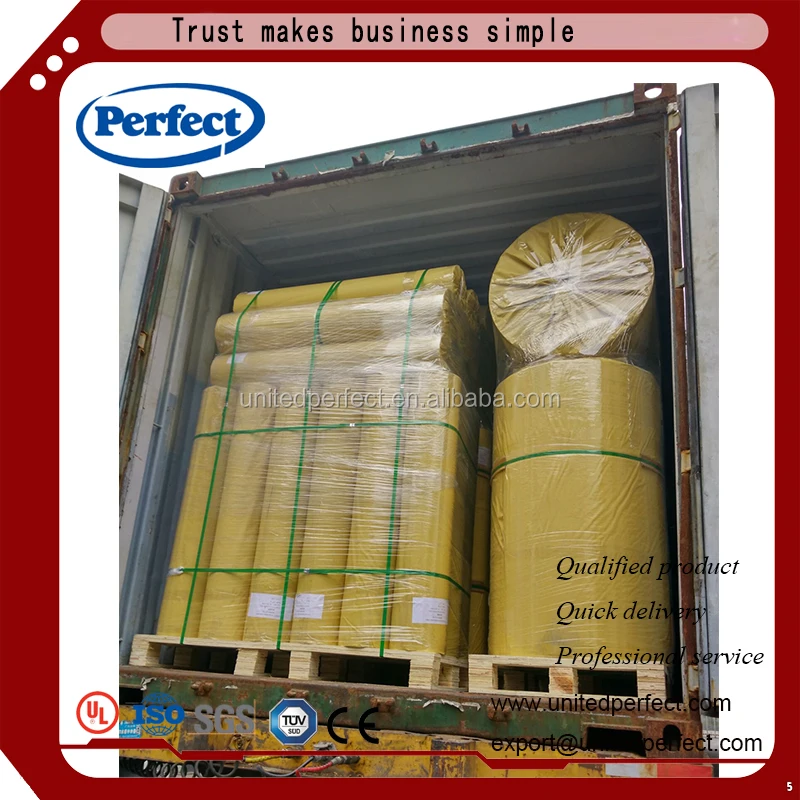

    Packing
